Brand New Inductive Hour Meter For Marine,ATV,Motorcycle,Dirt,Ski

Description:

• 100% Brand new and high quality.
• Color: Orange.
• Material: Resin + Plastic.
• Type: Electronic Gadgets.
• Built-in 1 x CR2430 battery 1.0" LCD screen display waterproof material.

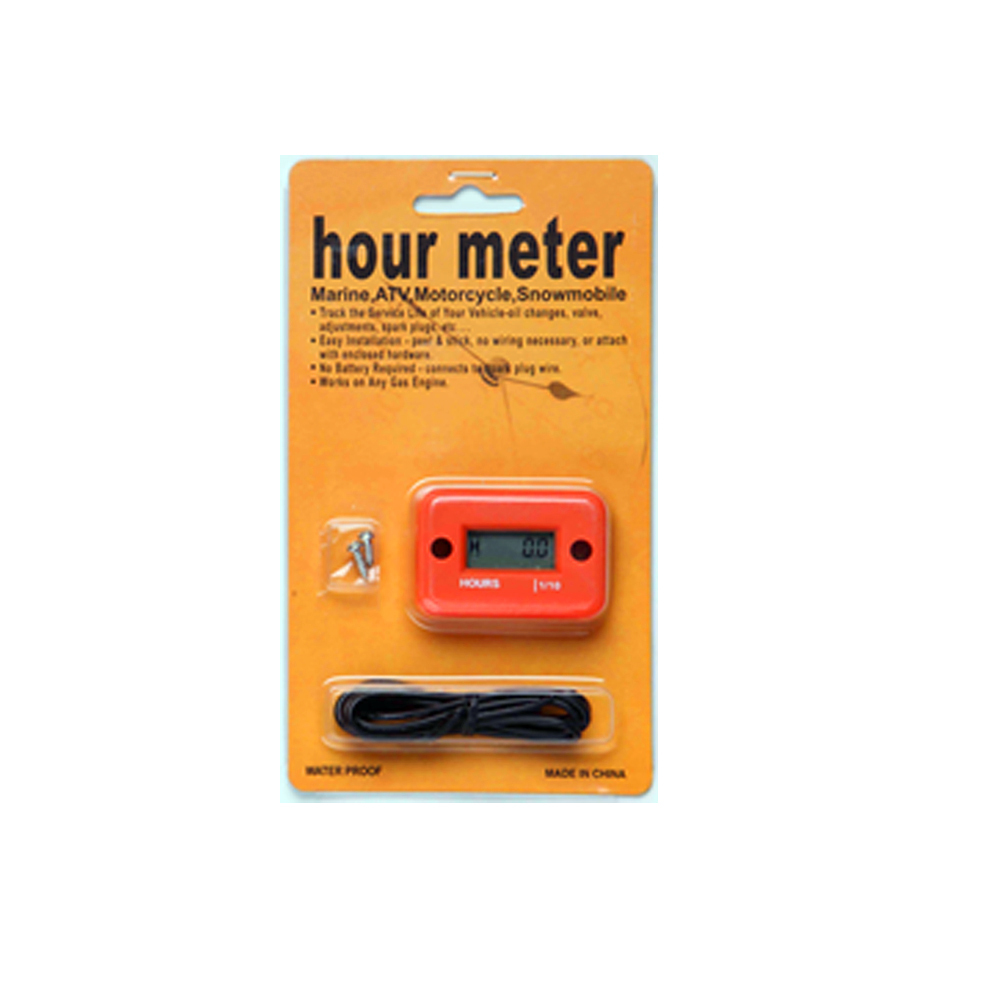

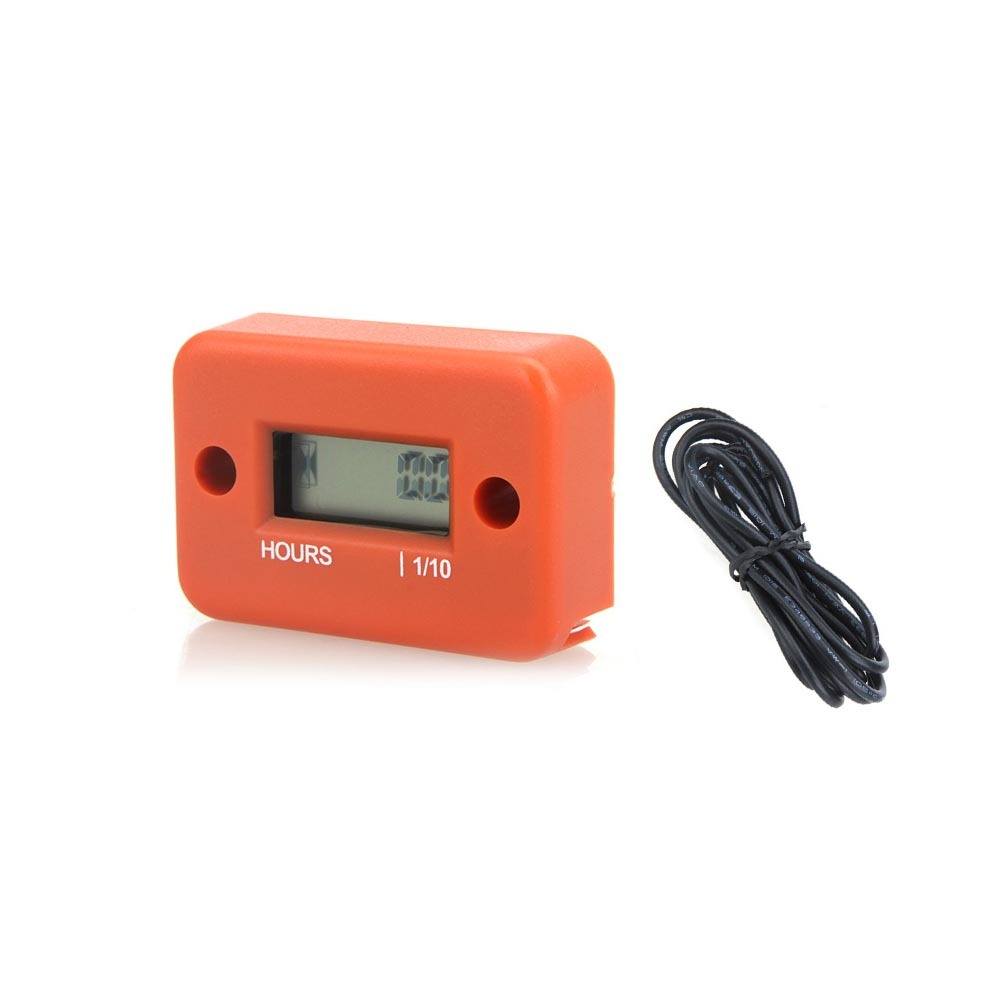

• Package Included:1 x Hour Meter,1 x Cable,2 x Screws.
• Compatibility:All motorcycle models(anytiong with a spark plug really should work).

Features:

• Track the service life of your vehicle-oil changes, valve, adjustments, spark plugs, etc.
• Easy installation,no wiring necessary,or attach with enclosed hardware.
• No battery required-connecys to spark plug wire.
• Works on any gas engine.
• Records and displays to 9,999.9 hours.stand-by time up to over 20,000 hours.
• Hour glass symbol appears and flashes on/off to indicate counting time.
• Automatic roll over.
• Resolution 0.1 hour.
• 100% epoxy encapsulated casing resists water,shock,stand fire of 85 celsius degree.

Hour meter installation method:

• Wrap the included pick-up wire around the spark plug wire five times.Start wrapping the pick-up wire about 4cm from the end of spark plug boot.Use the included zip tie to secure the pock-up wire wrapping.
• Before continuing the installation,insert the pick-up wire into the rear of the meter.Start the motor to make sure the meter is picking up the ignition signal.If it is,this will activate the timer on the meter and the icon on the left of the LCD will flash.You 'll have to wait at least 6 minutes for the timer to increase the timer display (1/10th of an hour).If it is not picking up the ignition signal,slide the pick-up wrap closer to the spark plug boot.
• If the meter is successfully picking up the spark signal,run and zip tie the pick-up along one of the throttle cables.Make sure the pick-up wire can npt make contact with the engine.Also,make sure you leave enough slack (about 8cm) so removing the spark plug wire is possible.Keep in mind the general location of final mounting location on the frame spare.

Hour meter securing method:

• Drilling into your frame with 2.5mm socket it to the frame coming with two pick-up screws.
• Using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties.
