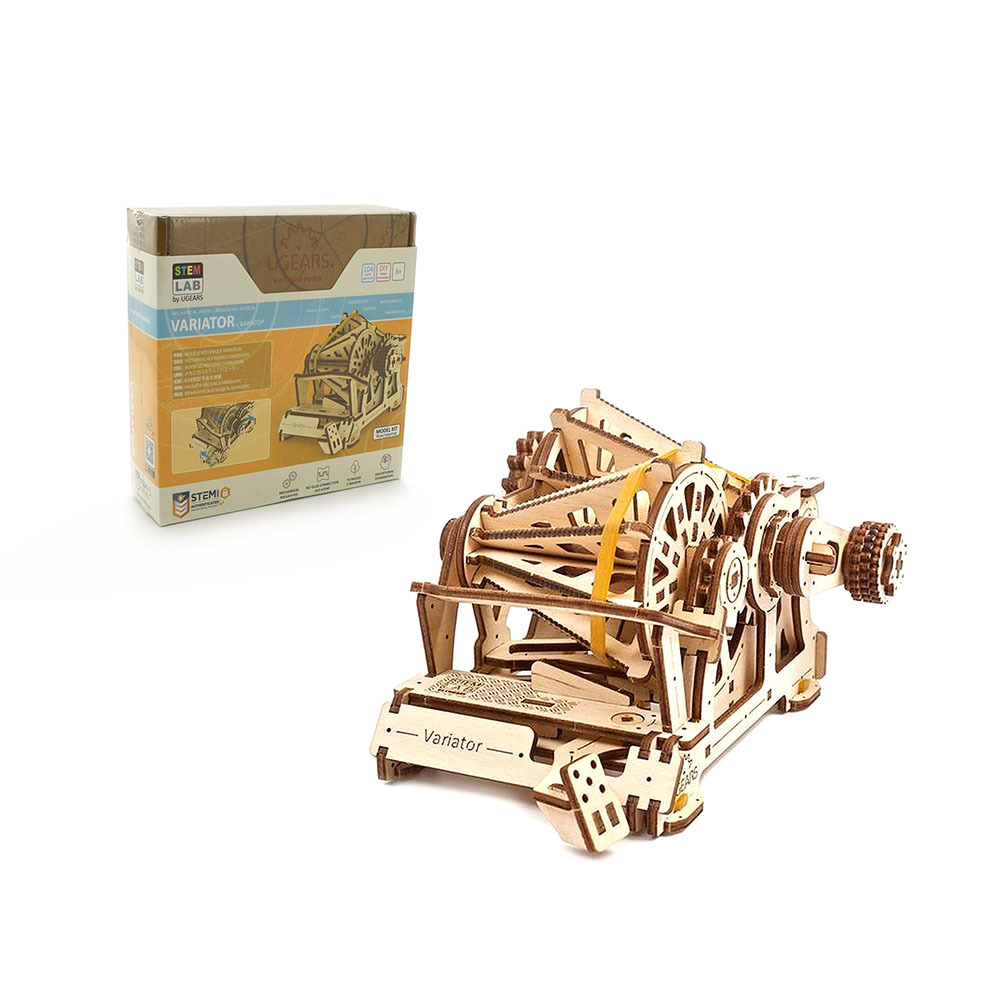

UGears Stem Lab Variator Mechanical Model Kit



Description:

  • Condition: 100% Brand New
  • Color: As picture show
  • Brand: UGears
  • Number of components: 104
  • Estimated time for assembly: 2.5 hours
  • Step-by step illustrated assembly instruction manual
  • Wooden details pre-cut with a precise high-tech laser in high-quality plywood boards, as well as other materials required for assembly
  • The models need no glue or additional instruments to build, the details come out of the board with a slight push
  • The mechanism of the Variator is composed of: Key, Drive cone pulley, Reducer, Belt, Pedal, Body and
    Transmission fork
  • Model Approximate dimensions: 168mm x 128mm x 106mm(L x W x H)

Features:

  • Recommended for ages 8+ years
  • Assemble it and discover the principle of working of the Variator
  • The model kit comes with a QR-code that will forward you to the learning guide about the mechanism, the principal of its working, the main characteristics, formulas, and interesting assignments
  • Dive into augmented reality and look at how the Variator works, Interact with the model via a special AR application from Ugears
  • The Variator is a device that transfers and adjusts the engine torque by changing the ratio of gears
  • Gear ratio can change automatically, manually or within a pre-set program
  • With the Ugears Variator model of the STEM lab collection you can learn and comprehend one of the most important parts of a car without soiling your hands in machine oil
  • The CVT is used in mechanisms, in which a continuous range of gear ratios must be changed seamlessly: cars, motor scooters, snowmobiles, quadracycles, conveyors, metal-cutting machines, etc. To have a better idea about how it is used in different types of equipment, try the AR application that comes with the Ugears STEM model

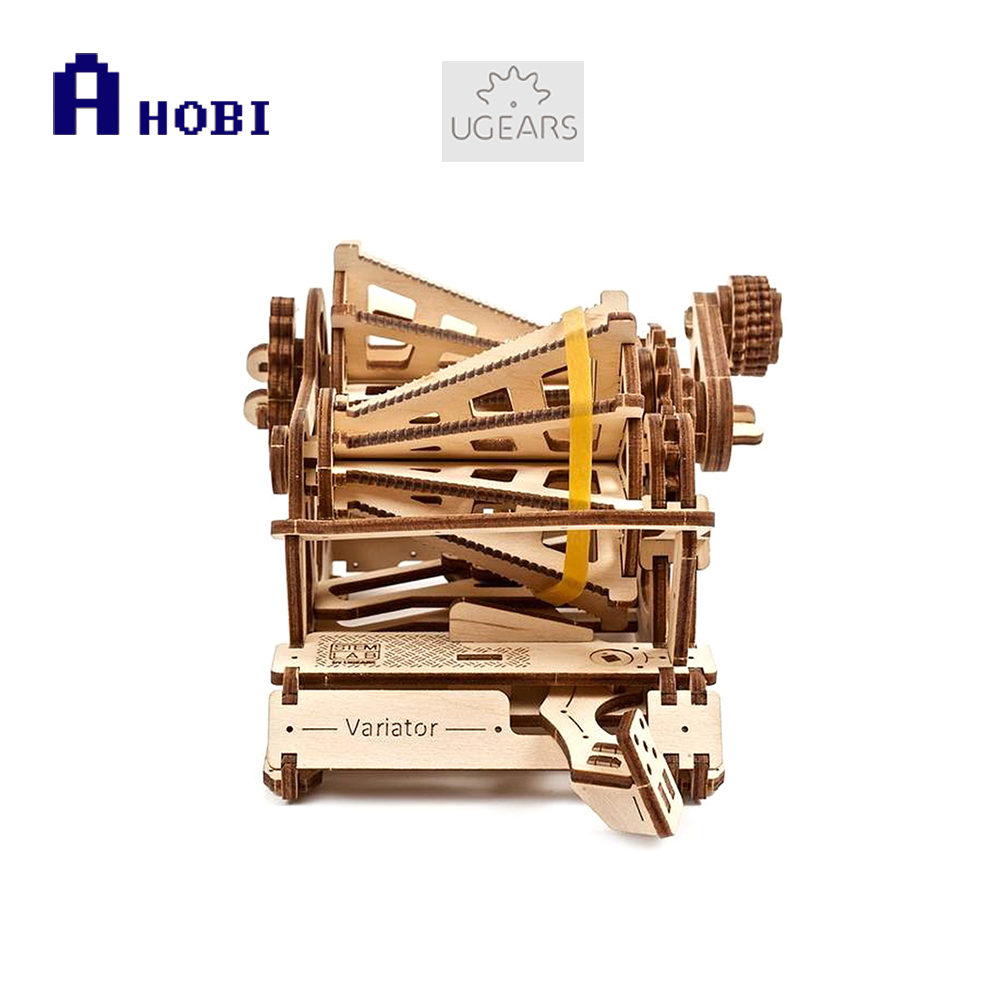

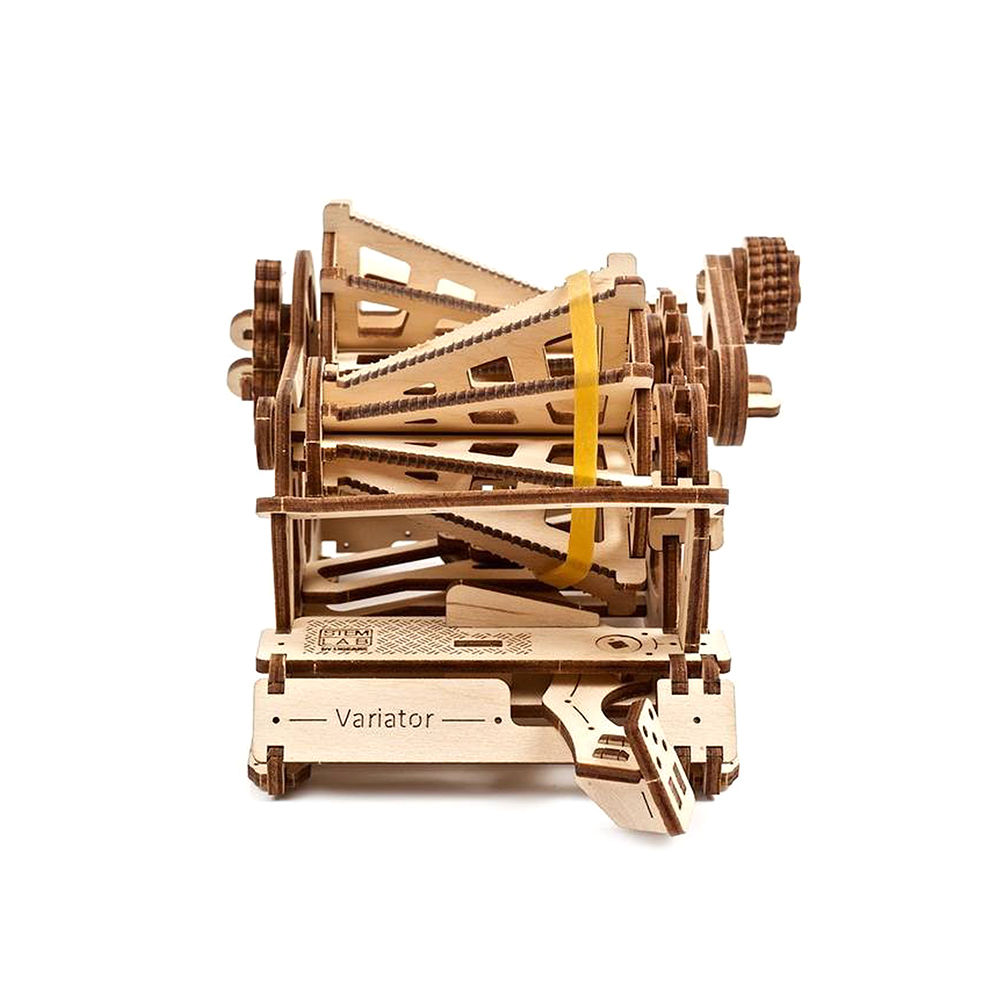

  • The Mechanical Variator of the STEM lab collection is a fully functional wooden replica of a Belt-driven Friction Cone CVT
  • The Cone CVT varies the drive ratio by moving a wheel or belt up and down the axis of conical roller
  • The belt, powered manually via the reducer, transfers the rotation to the driven cone pulleys
  • Use the transmission fork to change gears and observe how the speed of the driven cone pulley drops or rises while the drive cone pulley’s speed remains the same
  • Due to the open design of the model, you will be able to see the whole process
  • The assembly of the model will be interesting and won’t take much time

(TH00001022)

SKU TH00001022
Barcode # 4820184121188
Brand Ugears
Shipping Weight 0.6410kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.290m
Shipping Cubic 0.005800000m3
Unit Of Measure ea
